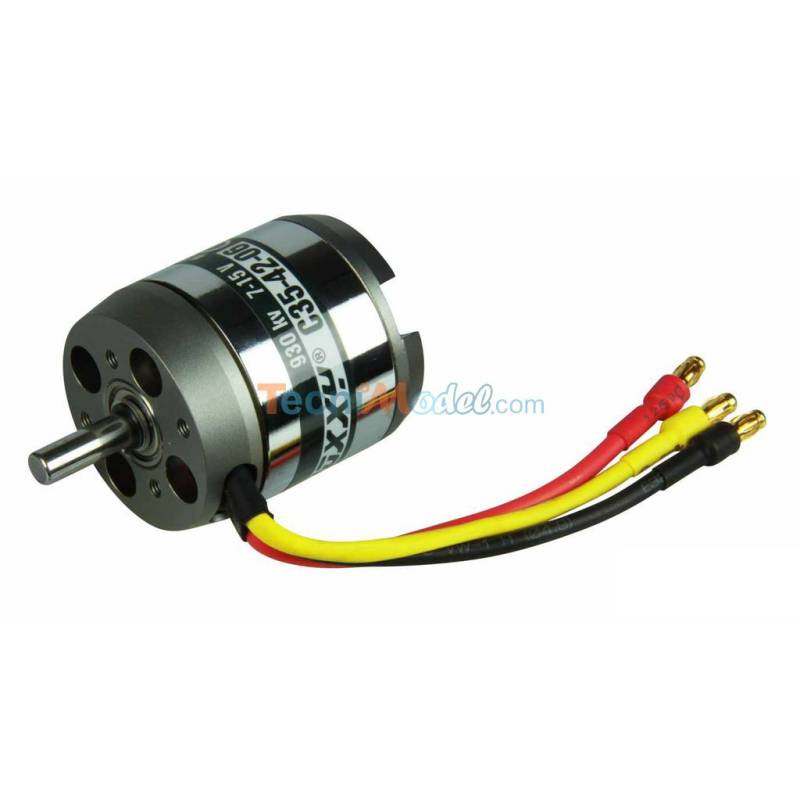

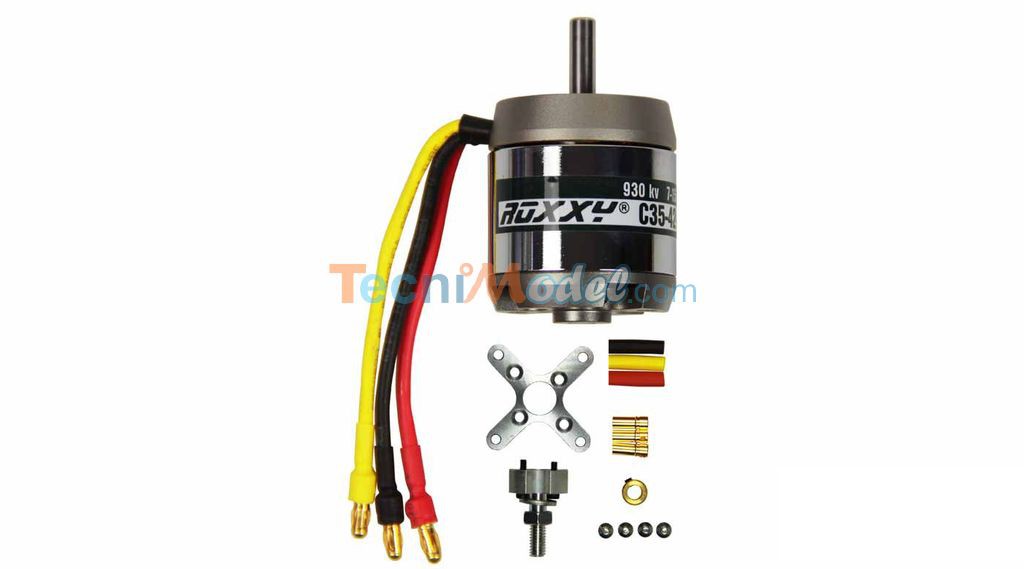

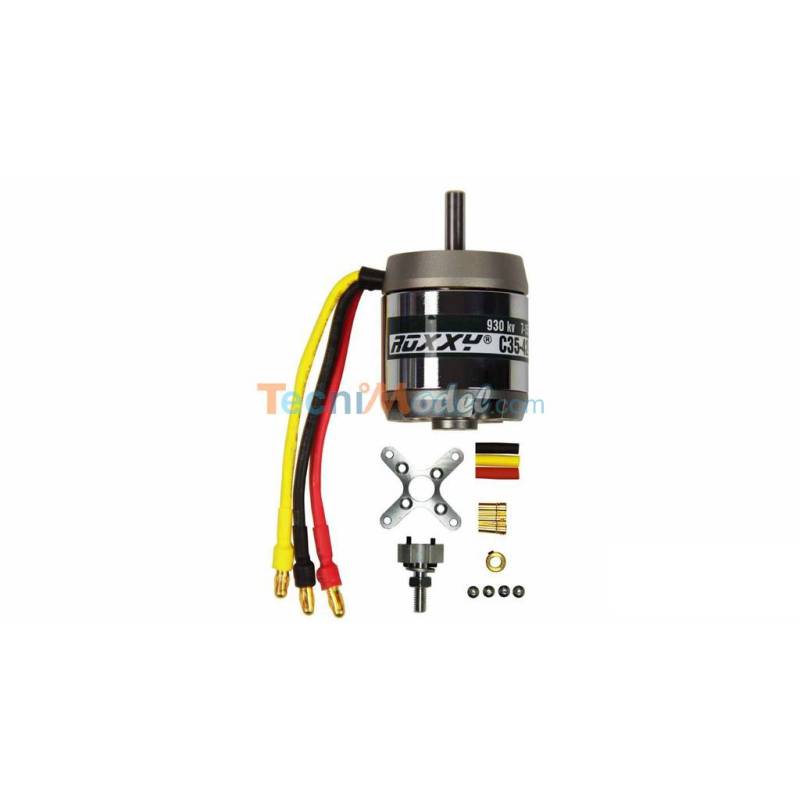

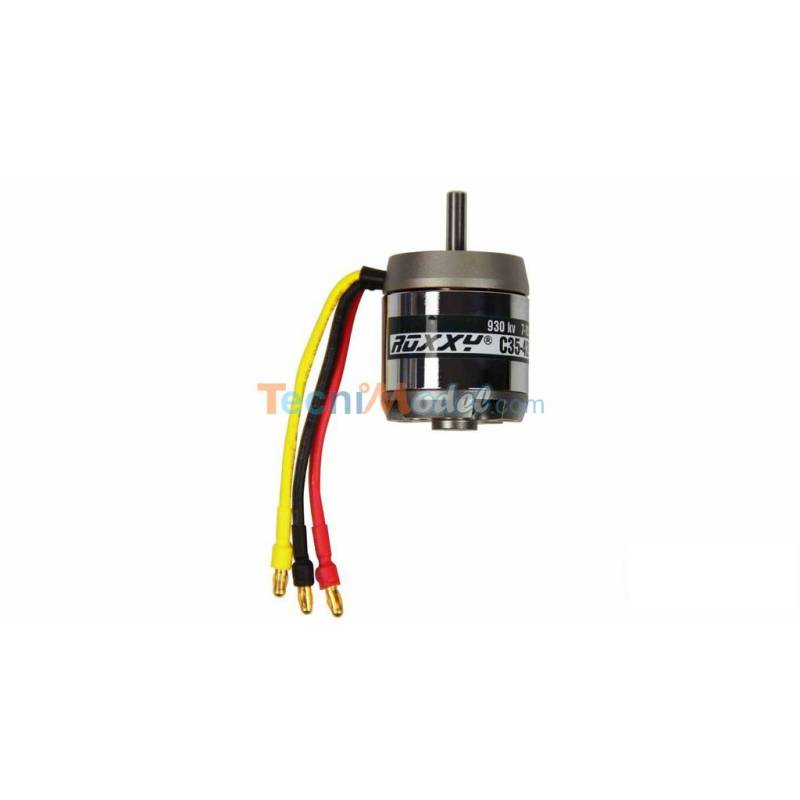

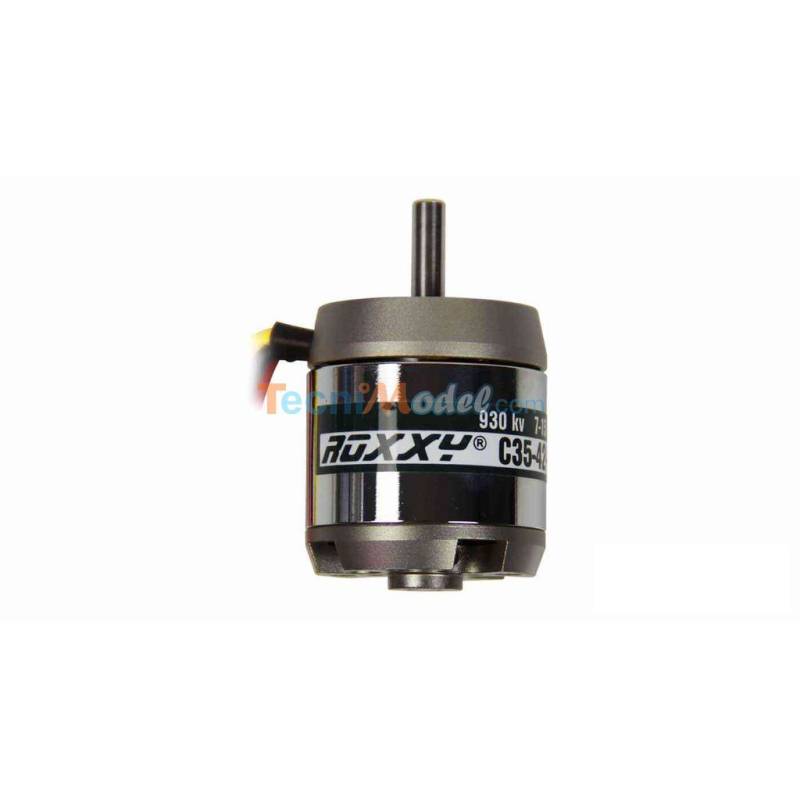

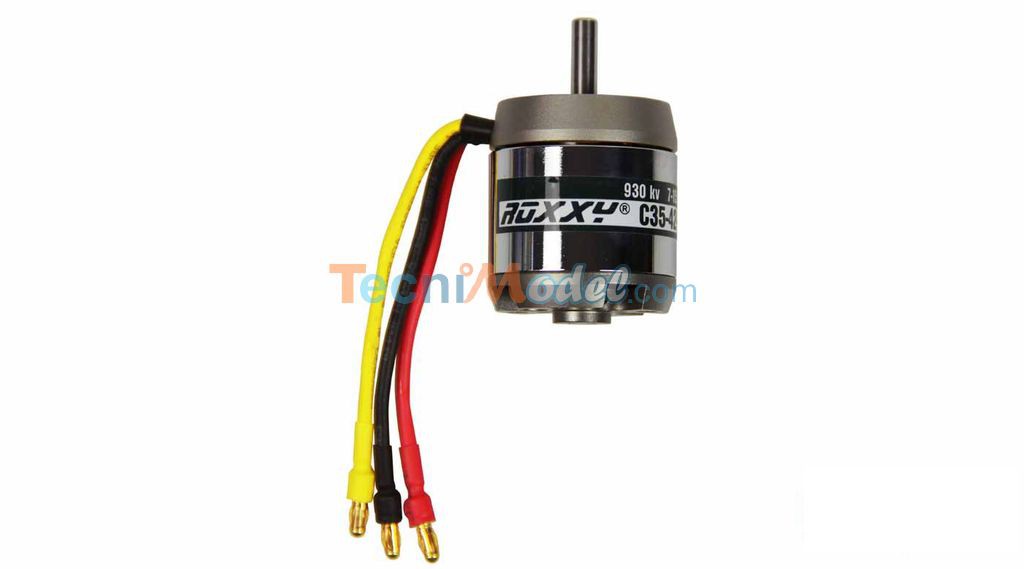

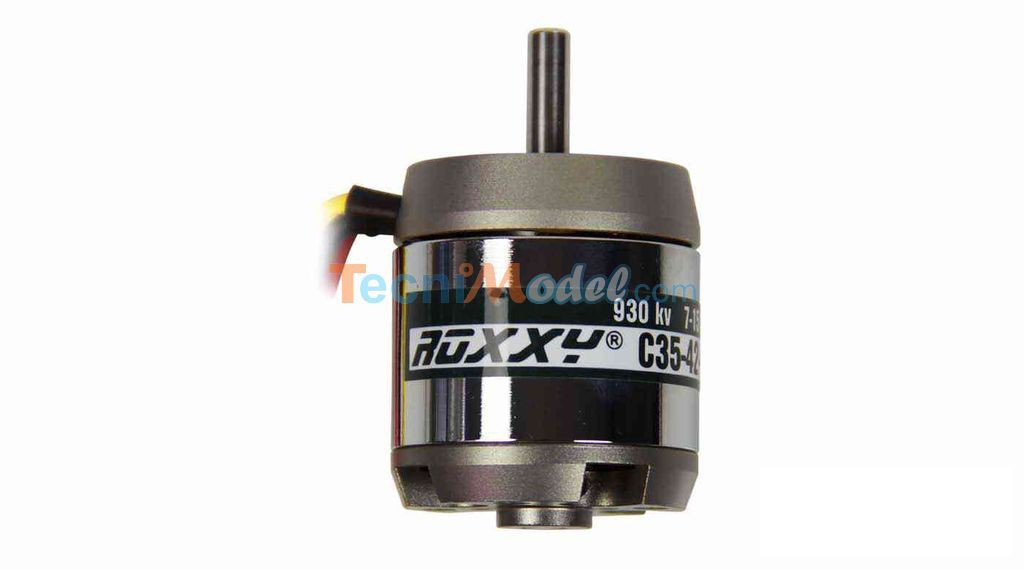

ROXXY Brushless Outrunner Motor C35-42-930kV

Multiplex ROXXY Brushless Outrunner C35-42-930kV

Due to their design structure, brushless motors with external armature (rotating cage) can drive large propellers without the use of gears. This makes them ideal for direct drives:
- Very high efficiency thanks to the maximum filling coefficient of copper and the use of neodymium magnets.
- High rotational flexibility thanks to large precision ball bearings.
- Can be mounted on both sides.
ROXXY brushless motors are available in a wide range of performance classes.

• Kv : 930tr/v
• Permissible voltage range: 7-15v
• Max. current (during max. 120s): < 38A
• Max. current (during max. 60s): 55A

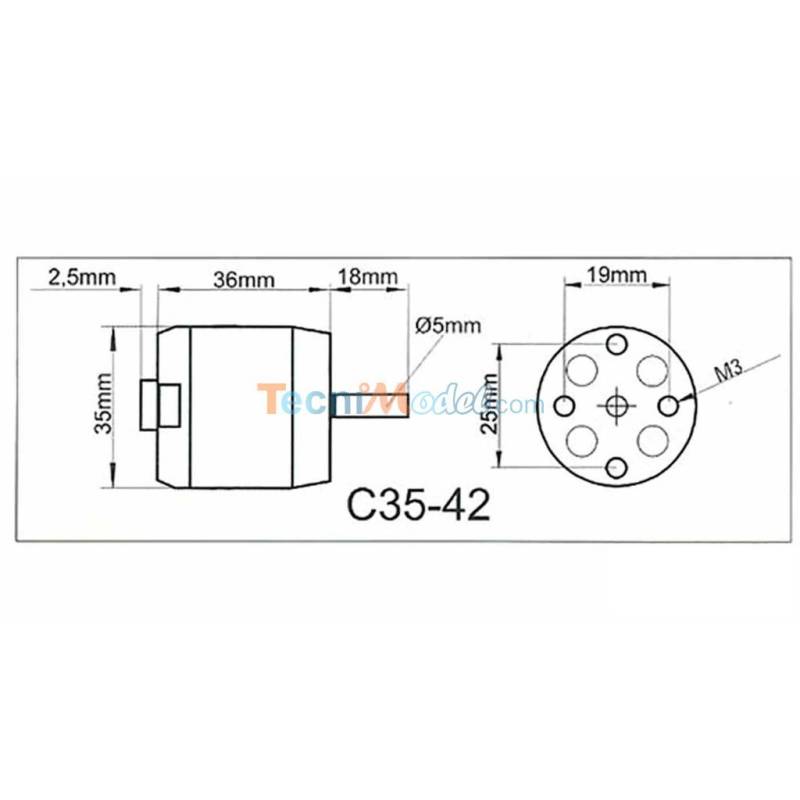

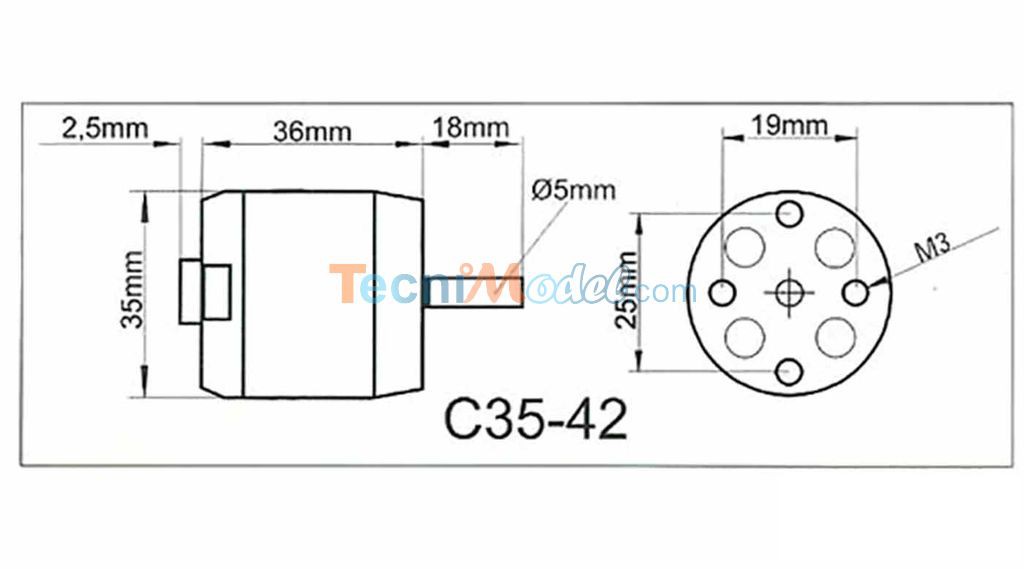

• Dimensions: Ø35 x 38mm
• Weight: 132g
• Shaft diameter: Ø5mm
• Number of poles: 14
