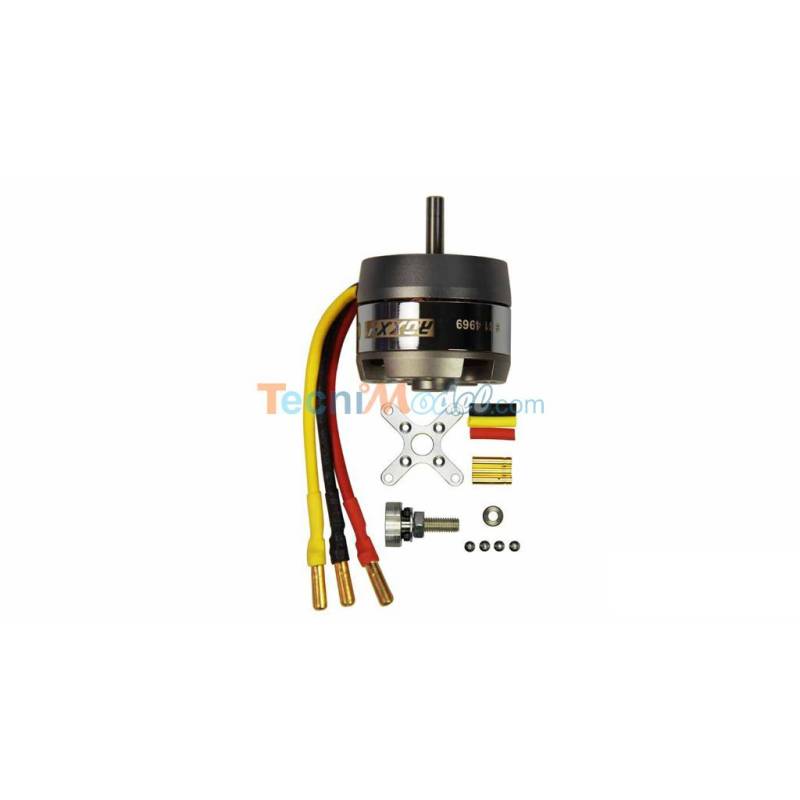

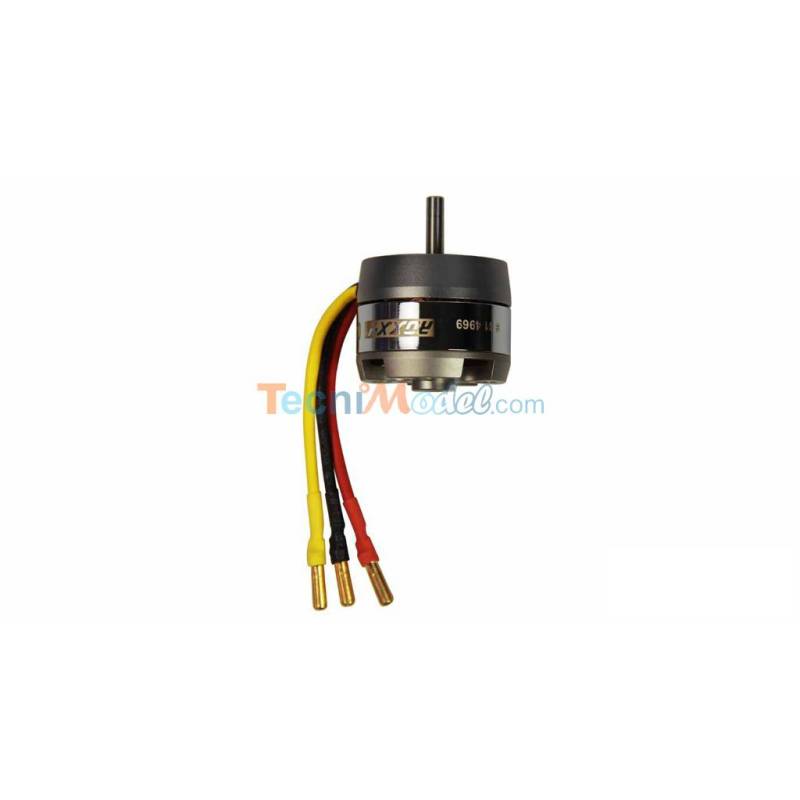

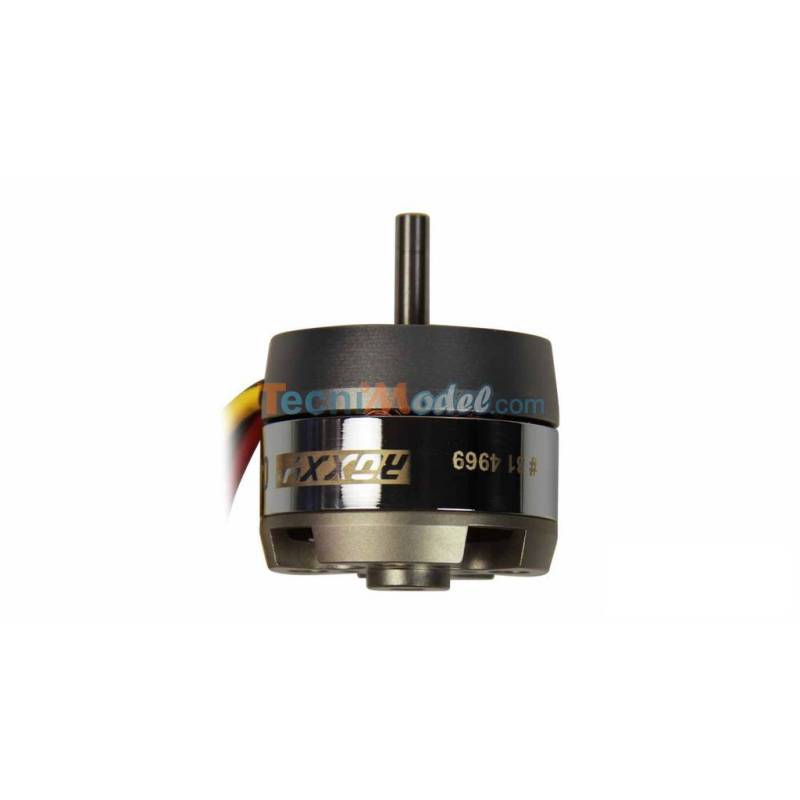

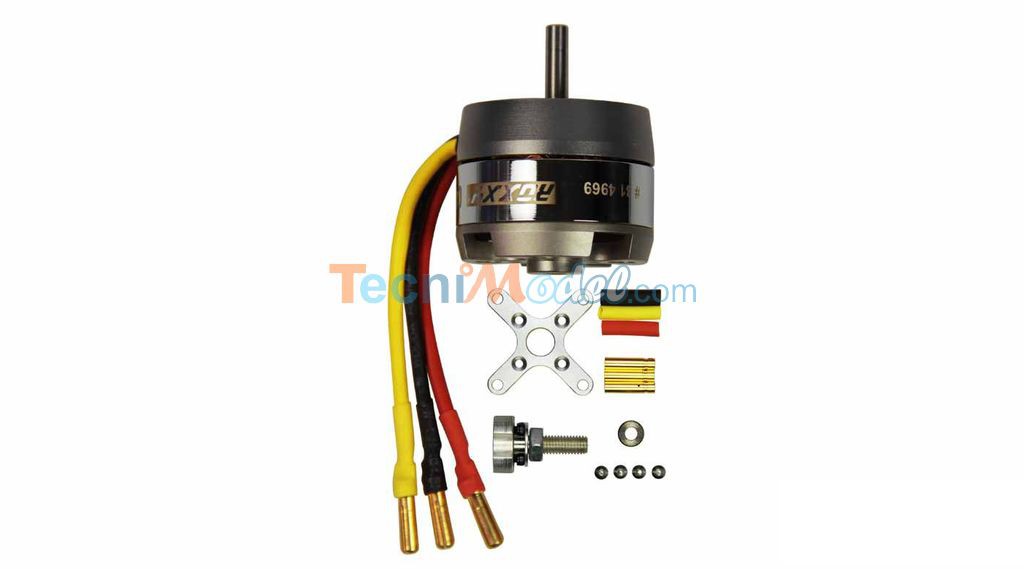

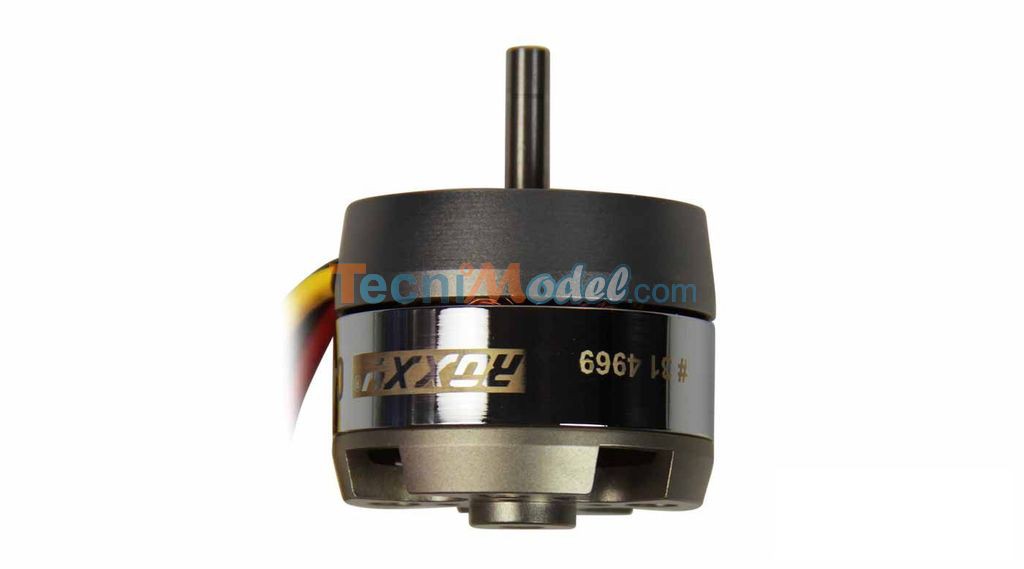

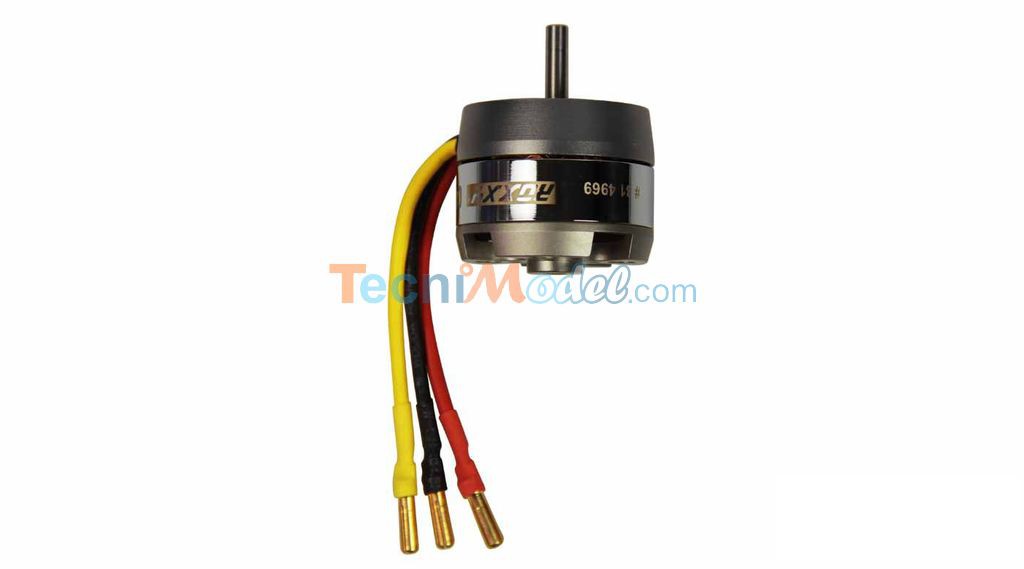

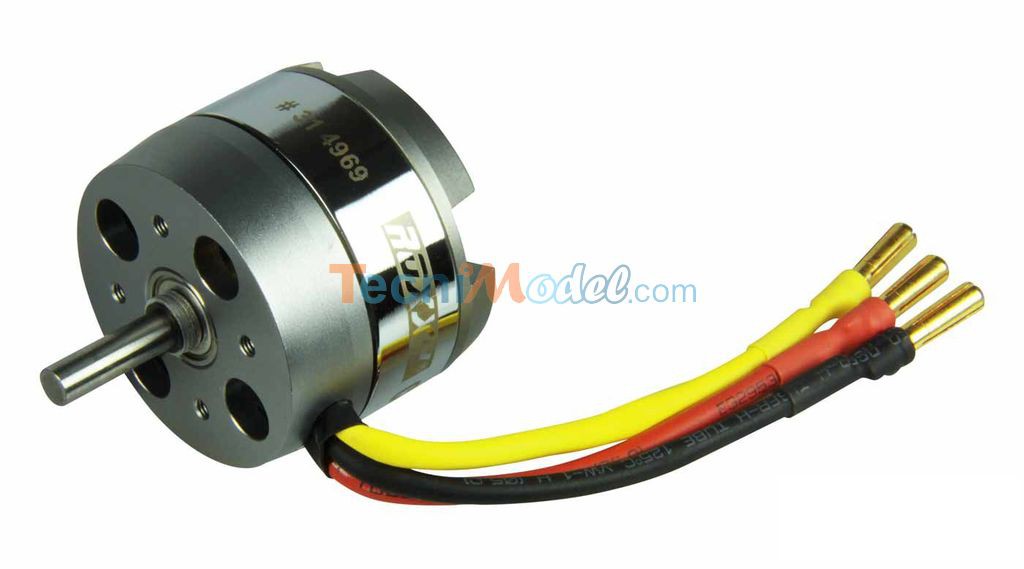

ROXXY Brushless Outrunner Motor C42-40-850kV

Multiplex ROXXY Brushless Outrunner Motor C42-40-850kV


New 14-pole ROXXY® D series external-armature brushless motor with three ball bearings.
To improve concentricity and precision, the D series of motors is equipped with a third, reduced-diameter ball bearing. This prevents clutch bell problems under load and ensures smooth motor rotation.
Due to their construction, these motors do not require a reduction mechanism.
This is a high-torque motor with high efficiency and a wide performance range, enabling it to drive large propellers.
Very high efficiency thanks to the maximum filling coefficient of copper and the use of neodymium magnets.
Smooth rotation thanks to three precision ball bearings.
Bilateral mounting possible.

• Kv: 850 rpm/volt
• Voltage range: 7 - 15v
• Max. current (during max. 120s): < 35A
• Max. current (during max. 60s): 40A

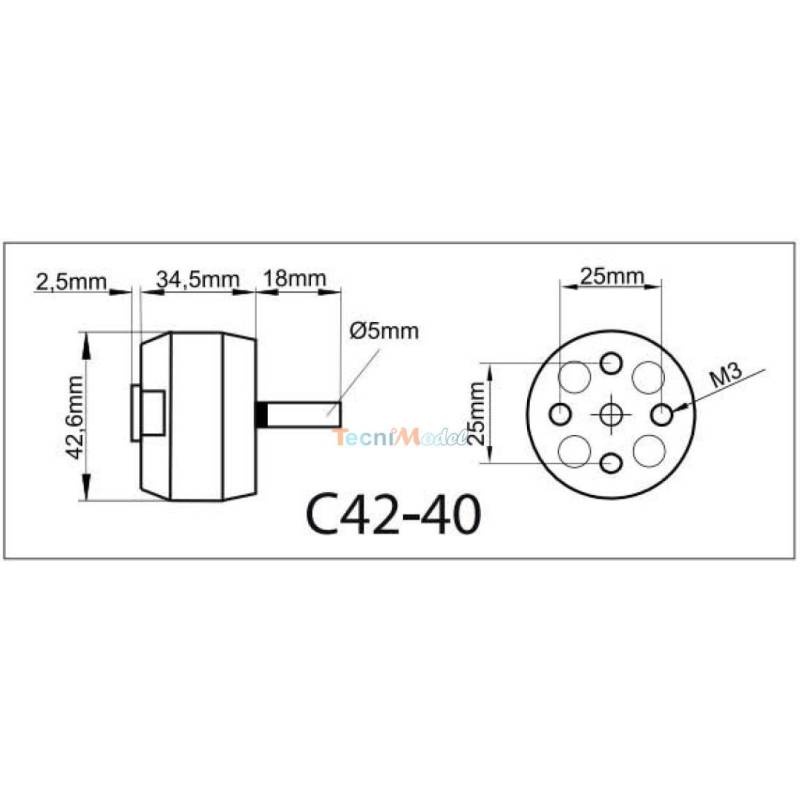

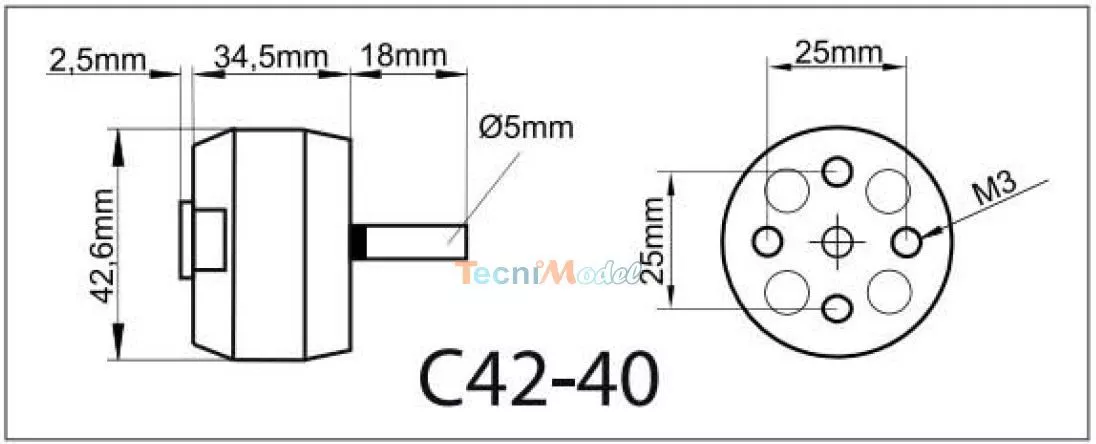

• Dimensions: Ø42 x 37mm

• Weight: 130g
• Shaft diameter: Ø5mm
• Number of poles: 14
